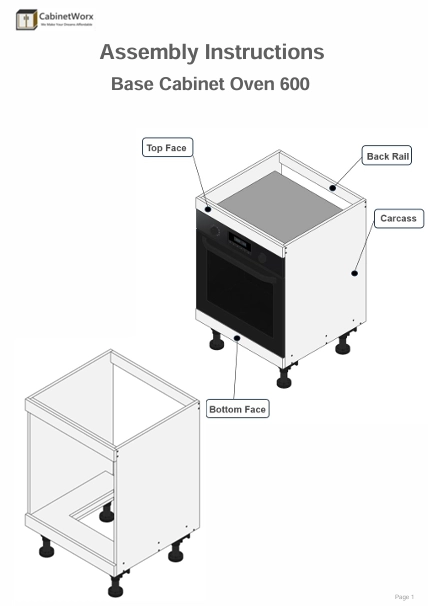

Base Oven Cabinet 600 Assembly Instructions - Professional DIY Kitchen Oven Housing Solution:
Welcome to your comprehensive assembly guide for CabinetWorX flatpack base oven cabinet 600mm. This purpose-built oven housing cabinet is designed to accommodate standard 60cm built-in ovens, providing you with a professional-quality kitchen installation that combines sturdy oven support with convenient drawer storage above.
Understanding Your Base Oven Cabinet 600:
A base oven cabinet 600 is specifically engineered to house built-in kitchen ovens, featuring a 600mm width that matches standard oven dimensions. This cabinet includes a reinforced base panel designed to support oven weight, sturdy side panels, a functional drawer unit positioned above the oven cavity for utensil storage, and adjustable legs that ensure level installation on uneven floors. The open-back design allows proper ventilation and easy electrical connection access for your oven installation.
Workspace Requirements:
Before beginning assembly, ensure you have adequate workspace for this specialized cabinet. You'll need a clean, flat surface at least 1.2 meters by 0.8 meters to lay out all components comfortably. A carpeted area or protective covering is recommended to prevent scratching the cabinet panels during construction. Given the oven cabinet's specific function, take extra care when handling the base panel and ensure your work surface can support the weight during assembly. Clear sufficient space to work around all sides, particularly when installing the drawer system.
What Makes These Instructions Easy to Follow:

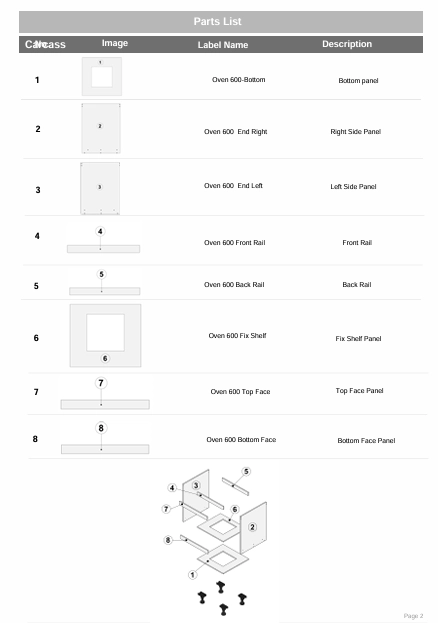

Our detailed step-by-step assembly guide features clear visual diagrams for each stage of construction, numbered component identification, and precise written instructions. Each panel is clearly labeled in the parts list, corresponding directly to the assembly steps. The pre-drilled construction eliminates guesswork, as all holes are precisely positioned for accurate alignment of drawer runners, leg plates, and structural components. Special attention is given to proper base reinforcement to ensure safe oven support.
Assembly Process Overview:

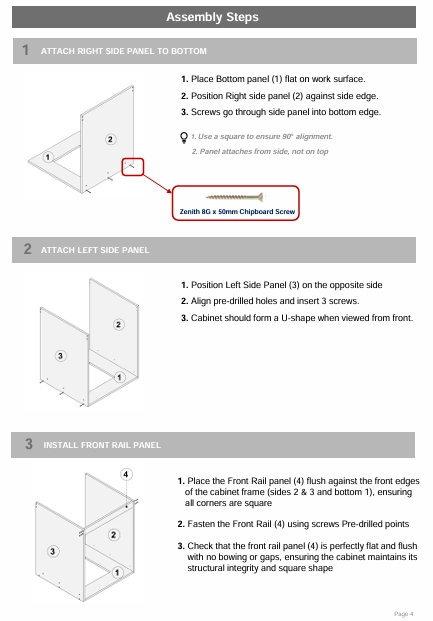

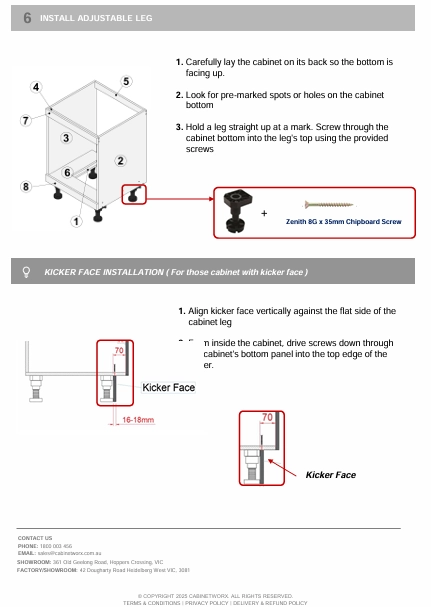

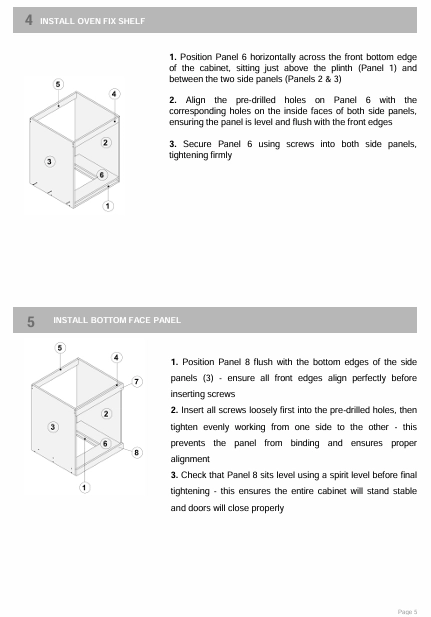

The instructions walk you through each comprehensive step, from base panel preparation through to drawer installation. You'll construct the main cabinet frame with reinforced base support, install side panels and back bracing, attach the drawer box assembly with full-extension runners, install adjustable legs for level positioning, and complete the assembly with drawer front attachment. Each step includes detailed notes and alignment tips to ensure your oven cabinet is structurally sound and ready for built-in oven installation.
These flatpack components arrive in compact packaging for easy transport, with all panels precision-cut and ready for assembly in your Australian home.
